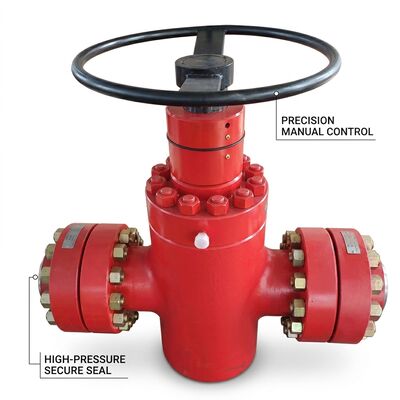

Stainless Steel High Pressure Gate Valve Manual Operation Type Ensuring Long Lasting Performance in Harsh Environments

Product Description:

The High Pressure Gate Valve is expertly engineered to meet the rigorous demands of industrial applications requiring reliable flow control under high pressure conditions. Designed with a welded bonnet body, this valve ensures enhanced structural integrity and durability, making it an ideal choice for systems where leakage prevention and long service life are paramount. The welded bonnet design not only improves the valve's strength but also simplifies maintenance by providing a robust seal that withstands extreme pressure and temperature variations.

Manufactured in compliance with industry-leading standards such as API 600 and ASME B16.34, the High Pressure Gate Valve guarantees adherence to stringent quality and performance criteria. These standards ensure that the valve’s design, materials, and testing procedures comply with the highest levels of safety and reliability demanded by the oil, gas, petrochemical, and power generation sectors. The valve’s construction and dimensions conform precisely to these standards, facilitating seamless integration into existing piping systems and ensuring compatibility with a wide range of industrial installations.

Testing is a critical component of the High Pressure Gate Valve's quality assurance process. This valve is tested according to the API 598 standard, which involves rigorous pressure and leak testing to verify its tight shutoff capabilities and overall performance under operational stresses. These tests confirm that the valve can reliably isolate flow without leakage, even under high pressure and temperature conditions, thus protecting downstream equipment and enhancing system safety.

The operational temperature range of the High Pressure Gate Valve spans from 75°F to 350°F, making it suitable for a variety of fluid mediums including steam, water, oil, and gas. This temperature range supports its application in diverse industrial environments where temperature fluctuations are common, ensuring consistent valve performance without compromise. The valve’s materials and construction are selected to maintain mechanical strength and sealing effectiveness throughout this temperature spectrum.

With a pressure rating classified as Class 1500, the High Pressure Gate Valve is designed to perform efficiently in high-pressure systems, capable of handling pressures up to 1500 psi. This makes it particularly suitable for high-pressure pipelines and process systems where robust flow isolation is necessary. The valve’s ability to withstand such high pressures without deformation or leakage underscores its suitability for critical service applications.

The High Pressure Gate Valve operates by lifting a gate out of the path of the fluid, allowing unobstructed flow when fully open, and providing a tight seal when closed. This simple yet effective mechanism offers minimal pressure drop across the valve when open, contributing to improved system efficiency. Its reliable sealing capability ensures zero leakage, which is essential for maintaining process integrity and safety in high-pressure systems.

In summary, the High Pressure Gate Valve with a welded bonnet design is a high-performance valve solution that combines robust construction, compliance with key industry standards, and thorough testing to deliver exceptional reliability and safety. Its wide operational temperature range and high-pressure rating make it adaptable to various demanding industrial applications. Whether used in oil and gas pipelines, chemical processing plants, or power generation facilities, this Gate Valve guarantees dependable flow control and leak-tight service, making it an indispensable component in any high-pressure system.

Features:

• Product Name: High Pressure Gate Valve
• Color: Red
• Temperature Range: -29°C to 425°C
• Operation Type: Manual / Gear Operated
• Body Design: Welded Bonnet
• Face to Face Dimension: As Per ASME B16.10
• The High Pressure Gate Valve is designed for high-pressure applications, ensuring reliable performance.
• This High Pressure Gate Valve features a robust welded bonnet body design for enhanced durability.
• Available in manual and gear operated options, the High Pressure Gate Valve offers versatile operation.

Technical Parameters:

Applications:

The High Pressure Gate Valve is a crucial component widely used in various industrial applications where precise flow control and reliable shutoff are essential. Designed to operate efficiently within a temperature range of -29°C to 425°C (approximately 75°F to 350°F), this gate valve is well-suited for handling high-pressure fluids in demanding environments. Its construction from high-quality stainless steel ensures exceptional durability, corrosion resistance, and longevity, making it ideal for harsh operating conditions.

The gate valve's face-to-face dimension is manufactured in accordance with ASME B16.10 standards, guaranteeing compatibility and interchangeability with existing pipeline systems. This adherence to stringent standards, along with compliance with API 600 and ASME B16.34 specifications, underscores the valve’s reliability and performance in critical applications. The valve’s robust design allows it to provide tight sealing and minimal pressure drop, making it an excellent choice for isolating or regulating flow in pipelines.

Common application occasions for this high pressure gate valve include oil and gas processing plants, petrochemical facilities, power generation stations, and water treatment plants. In these industries, the gate valve is frequently used for controlling the flow of liquids, gases, and steam under high pressure and temperature conditions. It is particularly effective in on/off service where a straight-line flow of fluid and minimum flow restriction are required.

In scenarios such as refinery operations, chemical processing, and pipeline distribution networks, the gate valve plays a vital role in ensuring operational safety and efficiency. Its ability to withstand extreme temperatures and pressures makes it suitable for use in steam lines, fuel handling systems, and high-pressure water lines. Additionally, its stainless steel construction provides excellent resistance to corrosive substances, expanding its usability in aggressive media environments.

Overall, the High Pressure Gate Valve is an indispensable valve type in industrial sectors that demand high performance under challenging conditions. Whether used for isolation, throttling, or emergency shutoff, this gate valve delivers reliable service and long-term durability, making it a trusted choice for engineers and maintenance professionals alike.

Customization:

Our High Pressure Gate Valve customization services are designed to meet the specific needs of your industrial applications. We offer Gate Valves that operate efficiently within a working temperature range of 75°F to 350°F, ensuring reliable performance under various conditions. Each Gate Valve is tested according to the stringent API 598 standard, guaranteeing superior quality and durability.

We provide High Pressure Gate Valves with a pressure rating of Class 1500, suitable for demanding environments requiring robust pressure control. Our products comply with recognized industry standards such as API 600 and ASME B16.34, ensuring safety, reliability, and compatibility with your existing systems.

Additionally, our High Pressure Gate Valves are designed to meet a Psl rating of 3, reflecting excellent pressure seal capabilities. Customize your Gate Valve with us to achieve optimal performance tailored to your exact specifications and operational requirements.

Support and Services:

Our High Pressure Gate Valve is designed to provide reliable and efficient performance in demanding industrial applications. For technical support, please ensure you have the valve model number, serial number, and operating conditions ready when seeking assistance.

Services we offer include installation guidance, troubleshooting, routine maintenance advice, and repair services. Our technical team is equipped to help with valve selection, pressure rating verification, and compatibility with your system requirements.

We recommend regular inspection and maintenance of the valve to ensure optimal performance and longevity. This includes checking for leaks, verifying the integrity of seals, and ensuring smooth operation of the gate mechanism.

For detailed manuals, installation instructions, and technical data sheets, please refer to the documentation provided with your valve or visit our official website.

FAQ:

Q1: What materials are used in the construction of the High Pressure Gate Valve?

A1: The High Pressure Gate Valve is typically made from stainless steel, carbon steel, or alloy steel to ensure durability and resistance to high pressure and corrosion.

Q2: What pressure ratings does the High Pressure Gate Valve support?

A2: This valve is designed to handle high pressure environments, with pressure ratings commonly ranging from 1500 psi up to 6000 psi, depending on the specific model and material.

Q3: What are the typical applications for the High Pressure Gate Valve?

A3: The valve is widely used in oil and gas pipelines, chemical plants, power plants, and other industrial systems where controlling high pressure flow is critical.

Q4: How is the High Pressure Gate Valve operated?

A4: It is usually operated manually via a handwheel, but can also be equipped with electric or pneumatic actuators for automated control.

Q5: Is the High Pressure Gate Valve suitable for both on/off and throttling applications?

A5: While primarily designed for on/off service to provide tight shutoff, it is not recommended for throttling as partial opening can cause damage to the gate and seat.
